M2000 Nato Mutt® Mobile Universal Trailer Tester

ELECTRICAL TESTING(12/24 Volt Operation):
⚙️ Designed for both 7-way round pin SAE J560 and 12-pin STANAG 4007 NATO plugs.
⚙️Power lights: manually, all-on, auto scan, or by remote control.
⚙️Audible and visual alerts: cross, open, overloaded and short circuit indication.
⚙️Pulsar® mode allows diagnostic repair.
⚙️Advanced trailer wiring diagnostics.
⚙️Amperage readout and range (0-20 amps).
⚙️Ground failure detection: differentiates between wire and chassis ground.

ABS TESTING:
⚙️Access ABS blink codes.
⚙️Test ABS fault blink codes via Auxiliary and Brake. ⚙️Circuit activation (i.e. Meritor/Wabco, Bendix® TABS-6 and Haldex systems).

AIR BRAKE TESTING:
⚙️Performs leak down test on service and emergency lines.
⚙️Remote control allows observation of slackers to measure and adjust pushrods.
⚙️Real-time, repetitive brake activation to find developing problems and verify leaking servo cans.
⚙️Features an internal air regulator.

REMOTE CONTROL:
⚙️12-button remote controls test all trailer electric circuitry and air brake actuation, 200 ft. range
⚙️Sync multiple (12) remotes to one unit

⚙️Power: 12/24V DC.
⚙️Power Input: Group 31 (or Similar, Not Included) or External 12V Power Source.
⚙️Output: 20A @ 12/24V DC.
⚙️Connection Type: 12-Pin STANAG 4007 NATO;7-Way Round Pin.
⚙️Controls: Manual, Remote, Automatic.
⚙️Materials: Steel Construction.
⚙️Made in USA

⚙️(2) 12-Button Remote Controls (#MUT-RM12)
⚙️5' 7-Way Cable (#7900K-1)
⚙️8' Red Hose with Gladhands (#7900AP-8RD-AS)
⚙️8′ Blue Hose with Gladhands (7900AP-8BL-AS)
⚙️10Amp Smart Battery Charger (#KCHG-121001)
⚙️ Face Shield (#9008-4R)

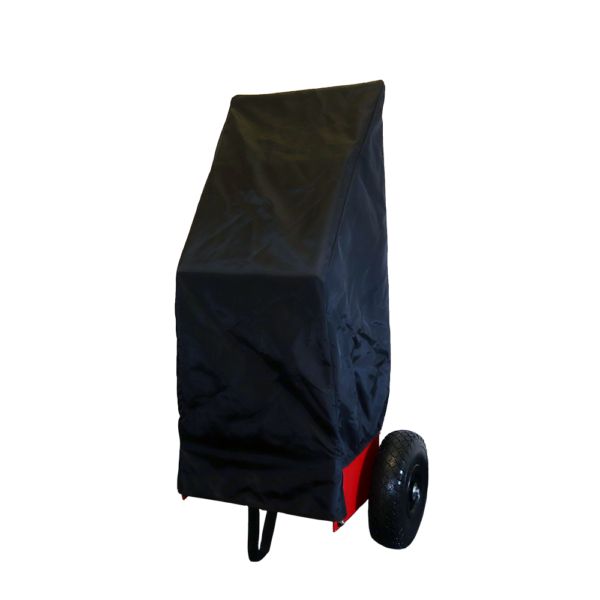

⚙️ Rain Cover (#CVR-0001)

• 21" W x 34" H x 15" D

56 lb

• 3-Year Limited Warranty
