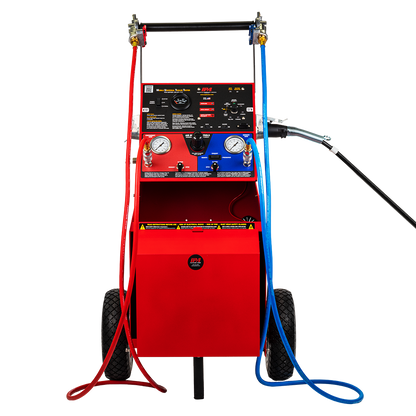

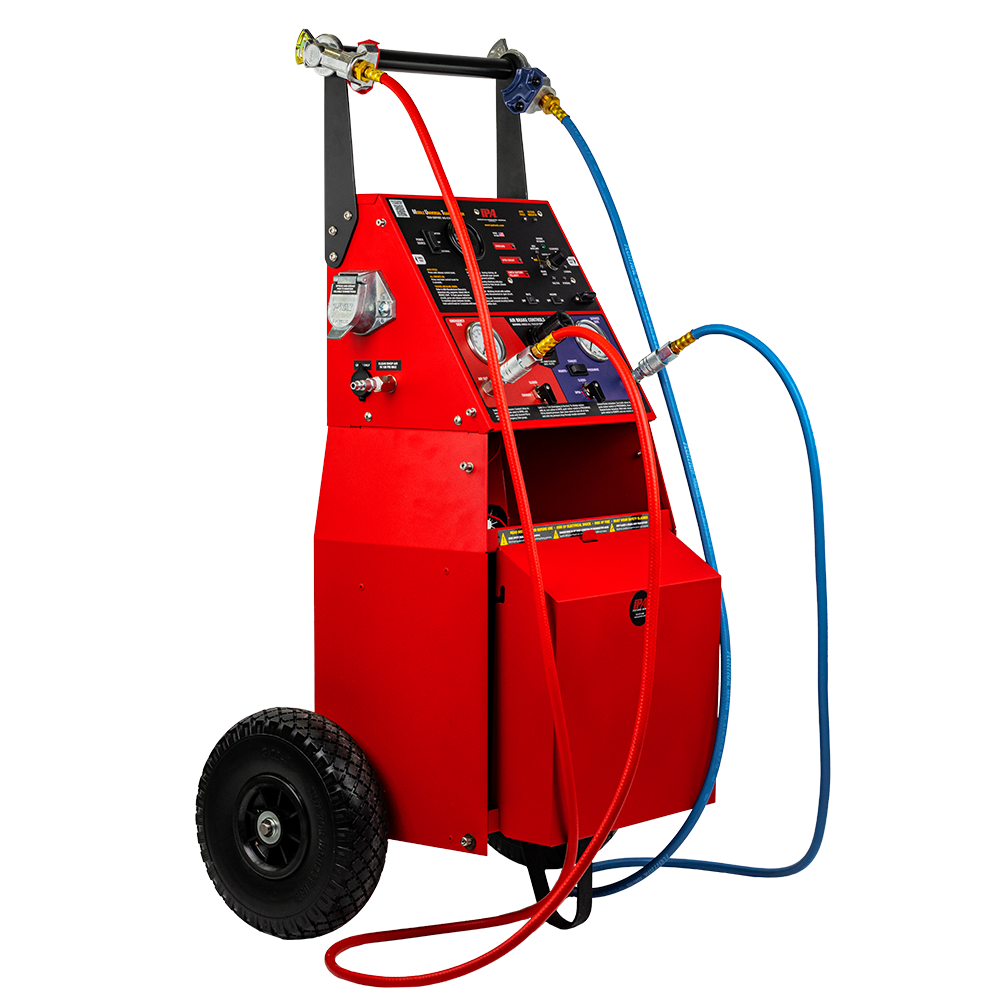

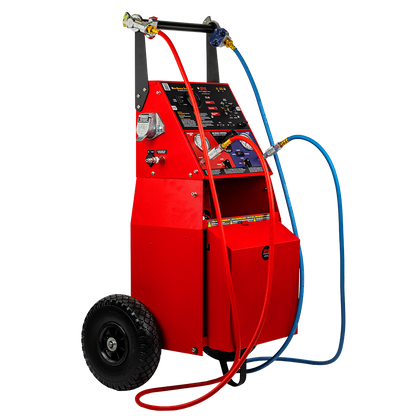

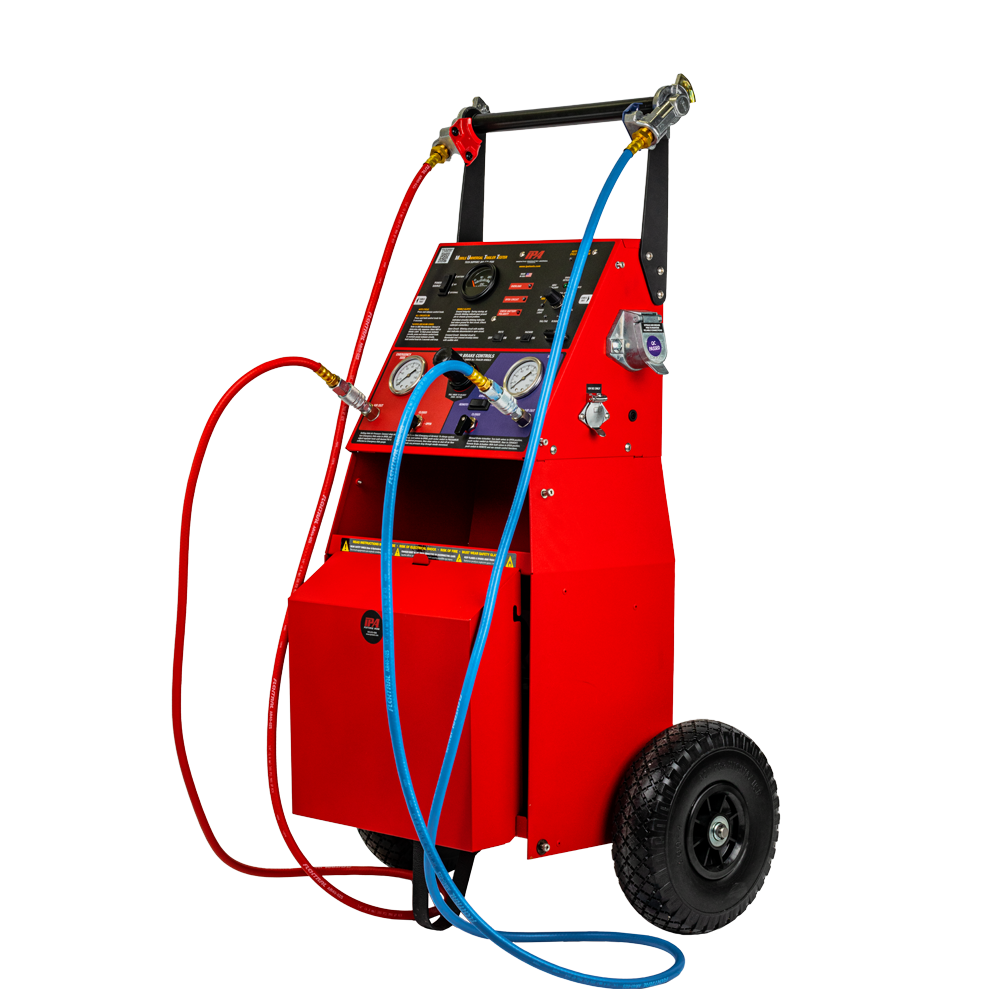

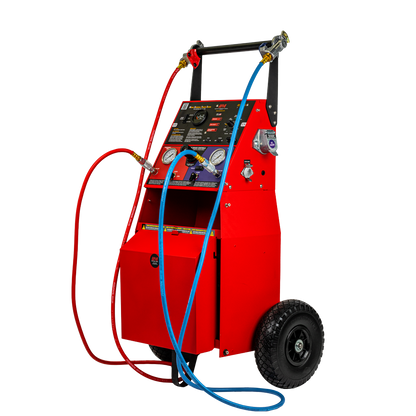

9008-DL Super Mutt ® PRO Edition

ELECTRICAL TESTING(12/24 Volt Operation):
⚙️Power lights: Manually, all-on, auto scan, or by remote control
⚙️Audible and visual alerts: cross, open, overloaded and short circuit indication
⚙️Pulsar® mode allows diagnostic repair
⚙️Advanced trailer wiring diagnostics
⚙️Amperage readout and range (0-20 amps)
⚙️Cable testing
⚙️Ground failure detection: differentiates between wire and chassis ground

AIR BRAKE TESTING:
⚙️Performs leak-down test on service and emergency lines
⚙️Remote control allows observation of slackers to measure and adjust pushrods
⚙️Real-time, repetitive brake activation to find developing problems and verify leaking servo cans

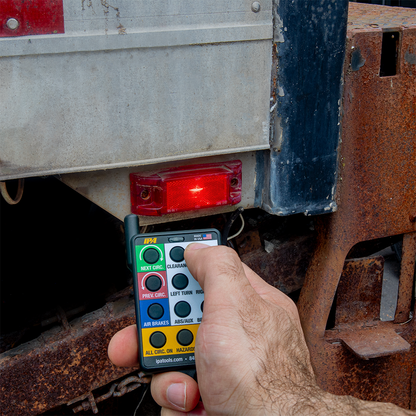

REMOTE CONTROL:
⚙️(2x) 12-button remote controls test all trailer electric circuitry and air brake actuation, 200 ft. range
⚙️Sync multiple remotes to one unit

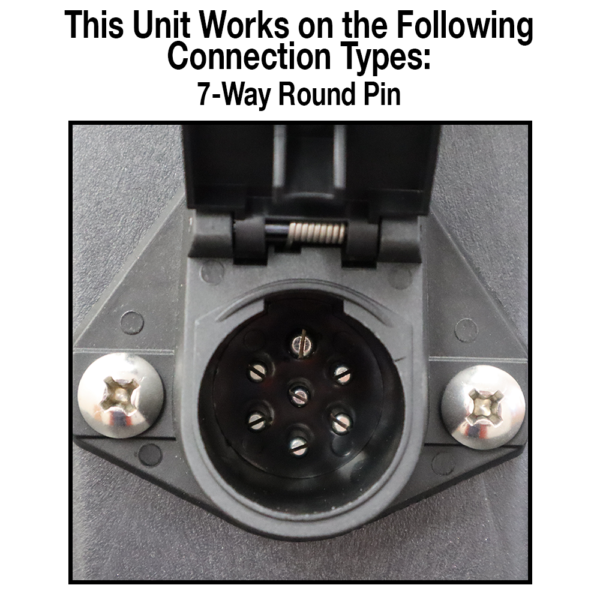

⚙️Connection Type: 7-Way Round Pin
⚙️Power Input: 12/24V DC
⚙️Suggested Battery: Group 31 (or similar battery) or external 12 volt power source
⚙️Source Output: 20A @ 12V DC
⚙️Max Operating Pressure: 120 psi
⚙️Air Input: ¼" npt (120 psi max.)
⚙️Controls: Manual, Remote, Automatic
⚙️Tires: 10" Pneumatic
⚙️Material: Powder-Coated Steel
⚙️Made In USA

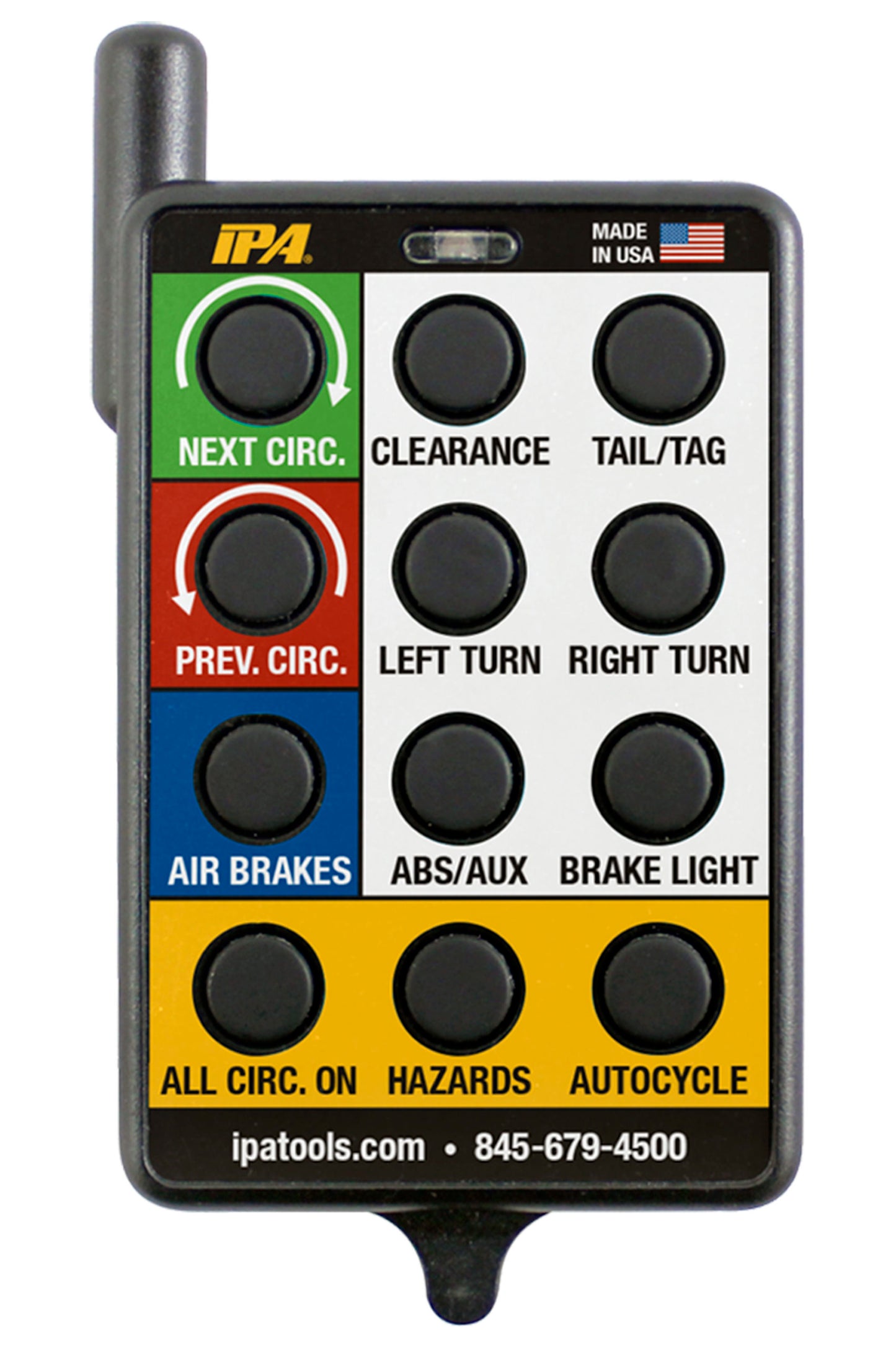

⚙️(2) 12-Button Remote Controls (#MUT-RM12)
⚙️5′ 7-Way Cable (#7900 K-1)
⚙️8′ Red Hose with Gladhands (#7900AP-8RD-AS)
⚙️8′ Blue Hose with Gladhands (7900AP-8BL-AS)

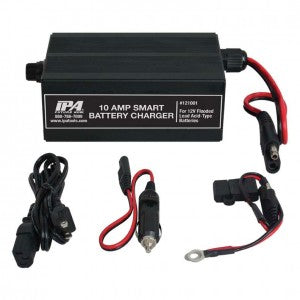

⚙️ 10-Amp Smart Battery Charger (#CHG-10AMP-AS)
⚙️ Face/Battery Shield (#9008-4R)
⚙️Rain Cover (#CVR-0001)

• 21" L x 15" W x 35" H

56 lb

• 3-Year Limited Warranty
