5611A-RT8 Alpha Mutt® (2nd GEN) W/ ABS,Rugged Tablet & Slide-Out Base

ELECTRICAL TESTING (12/24 Volt Operation):

⚙️Automatic cross, open, overload and short fault detection.
⚙️Highly accurate digital ammeter with 1mA resolution.
⚙️Chase down short circuits with Pulsar® Mode.
⚙️Cable testing.
⚙️Ground failure detection: differentiates between wire and chassis ground.
⚙️Control lights by remote or tablet.
⚙️Detailed inspection report generated from auto-test function in under 60 seconds.

ABS TESTING:

⚙️Real-time ABS software—features with integrated ECU sensor diagrams.
⚙️Reads and Clears Codes on Front Panel or via Tablet.
⚙️Displays diagnostic troubleshooting information.
Access ECU data: manufacturer, make, model, etc.

AIR BRAKE TESTING:

⚙️Tablet or remote-controlled air brake activation.
⚙️Real-time, repetitive brake activation to find developing problems and verify leaking servo cans.
⚙️Perform analog leak-down tests in service and emergency lines.

IPA®’s Diagnostic Software Suite

⚙️IPA®’s diagnostic software suite provides faster and more comprehensive paperless inspections, resulting in less mistakes and citations down the road. The Inspection Customization Tab helps reduce costs and technician/fleet manager frustrations by avoiding time-consuming, failure-prone data entry points.

DOT INSPECTIONS:

⚙️Trailer VIN and all required information can be entered and saved to avoid redundant data entry.
⚙️Customize templates with Inspection Creation Tab
Inspection accountability.
⚙️Technician’s username is recorded with each test.

PREVENTS RECURRING MISTAKES AND PROVIDES WALK-THROUGH EXPERT GUIDANCE

⚙️Built-in Diagnostic Message Center analyzes inspection results in real-time, providing users with immediate feedback and troubleshooting suggestions.
⚙️Detailed pass/fail circuit conditions (ground, open, crossed and short) will alert with specific values.
⚙️Provides real-time data and control.
⚙️Records multiple data points for each circuit including wattage, voltage and current.
⚙️Reads accurate current from 0-21 amps @ 1mA resolution.

RECORD AND ANALYZE INSPECTIONS RESULTS

⚙️Logs detailed pass/fail inspection reports.
⚙️Report history allows fleet managers to analyze patterns for predictable failure points across all fleet and service locations.
⚙️Cloud-based option syncs an unlimited number of service locations with a central hub.
⚙️Email, print or export reports to PDF or XLS formats.
⚙️Software can be utilized on any Android tablet (custom solutions available for other operating systems).


OPTIMIZED FOR EXTREME WEATHER CONDITIONS:

⚙️Waterproof and sealed face label with illuminated stainless steel pushbutton switches.
⚙️Two dual-line, 32-character LCD screens optimized for outdoor use with backlighting for nighttime, sunlight readable for daytime, and wide-angle view Internal circuit board coated to protect from moisture and corrosion.
⚙️MIL-STD-810 certified, military-grade weatherproof rugged tablet.

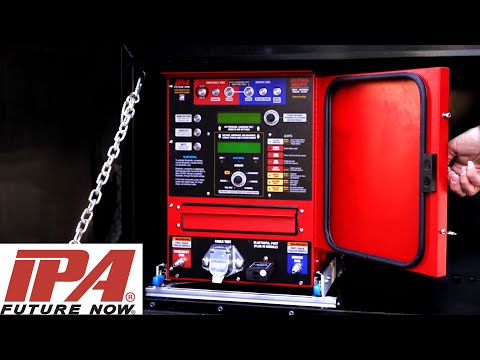

⚙️Weather-tight steel door to keep electronics and control panel safe in all conditions.

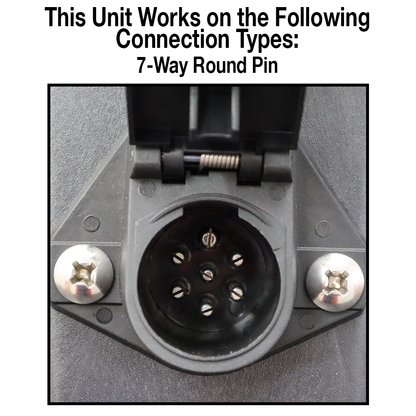

⚙️Connection Type: 7-Way Round Pin.
⚙️Power Input: 12/24V DC.
⚙️Ammeter: 0 - 21 amps, 1mA Resolution.
⚙️Source Output: 20A @ 12/24V DC.
⚙️Max. Operating Pressure: 120 psi.
⚙️Air Input: 1/4" npt (120 psi max.).
⚙️Controls: Tablet, Remote or Manual.
⚙️Tablet: Android Operating System.
⚙️Bluetooth®: 4.0 or Newer.
⚙️Tablet/Remote Range: 100'.
⚙️Tablet Dimensions: 10" x 7".
⚙️Tablet Resolution: 1080.
⚙️Lid: Face Cover with Dampeners.
⚙️Materials: 16-Gauge Powder-Coated Steel Construction.
⚙️Made In USA.

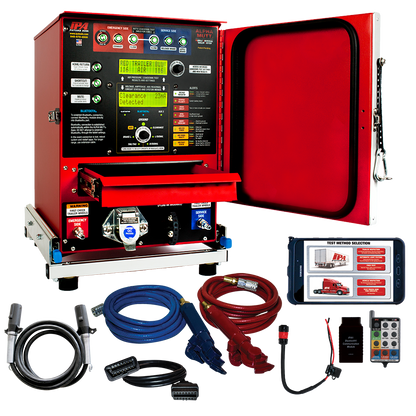

⚙️Rugged Tablet (#5700-TABRT).
⚙️Slide-Out Base (#ST-BASE).

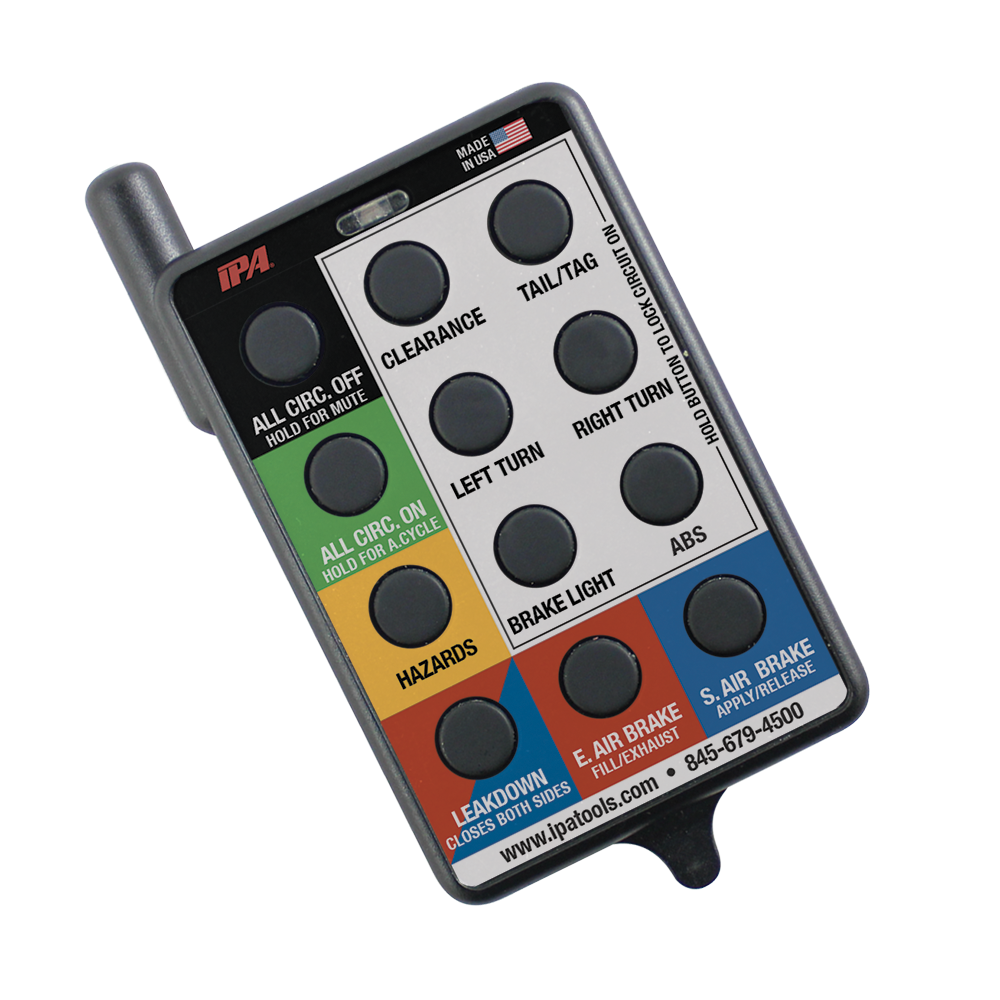

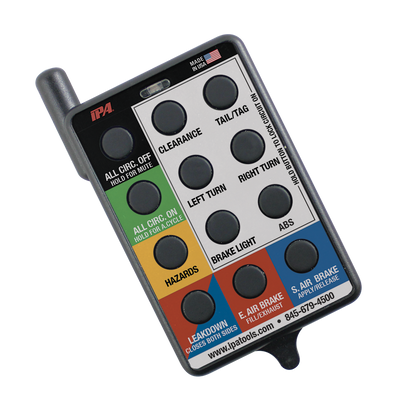

⚙️2nd Gen 12-Button Remote (#MUT2-RM12).
⚙️20′ 7-Way Cable (#7900K-1-20AS).
⚙️20′ Red Gladhand Hose with Handle (5600-20RED-AS).
⚙️20′ Blue Gladhand Hose with Handle (5600-20BLUE-AS).
⚙️5′ Bluetooth® Extension Cable (CBL-OBD2EXT).
⚙️Power Cable (#5600-PWRCBL-AS).

• 16.5" W x 21.5" H x19" D  (33" extended)

54 lb

• 3-Year Limited
