5510A-L4RT8 Alpha MUTT® (2nd Gen) w/ ABS Lithium Battery and Rugged Tablet, Bench-Top Model
5510A-L4RT8 Alpha MUTT® (2nd Gen) w/ ABS Lithium Battery and Rugged Tablet, Bench-Top Model
One-Man, Battery-Powered Trailer Inspection System that Tests a Trailer Without a Truck! Integrate all aspects of trailer service and repair with this easy-to-use trailer tester with advanced ABS, lights and digital air brake diagnostics.
Enjoy Free Shipping Within US!🚚
Features and benefits
Features and benefits
ABS TESTING
⚙️Reads and clears codes on front panel or rugged tablet.
⚙️Accesses ECU data; manufacturer, make, model, etc.
⚙️Displays diagnostic troubleshooting information.
⚙️Automatically detects corroded ABS wires and faulty ECU’s with patent-pending technology.
⚙️No lag time when accessing ABS with IPA®’s custom diagnostic software.
ELECTRICAL TESTING(12/24 Volt Operation)
⚙️Automatic cross, open, overload, short and ground fault detection.
⚙️Highly accurate digital ammeter with 1mA resolution.
⚙️Chase down short circuits with Pulsar® mode.
⚙️Ground failure detection: differentiates between wire and chassis ground.
⚙️Cable testing.
⚙️Control lights by remote or rugged tablet.
⚙️Detailed inspection report generated from auto-test report function in under 60 seconds.
AIR BRAKE TESTING
⚙️Dual regulators.
⚙️Rugged tablet or remote-controlled air brake activation.
⚙️Real-time, repetitive brake activation to find developing problems and verify leaking servo cans.
⚙️Perform analog leak-down tests in service and emergency lines.
TRUCK-SIDE TESTING
⚙️Tests continuity to trailer connectors of tractor.
⚙️Tests air brake output at tractor gladhands.
ENVIRONMENTALLY SAFE, LONG-LASTING AND STRONGER BATTERY:
⚙️LiFePO4 batteries are superior to other lithium and lead acid batteries.
⚙️Lithium iron phosphate composition is non-toxic and naturally non-combustible.
⚙️Lighter and safer than standard lithium ion batteries.
IPA®’s DIAGNOSTIC SOFTWARE SUITE:
⚙️IPA®’s diagnostic software suite provides faster and more comprehensive paperless inspections, resulting in less mistakes and citations down the road.
Specifications
Specifications

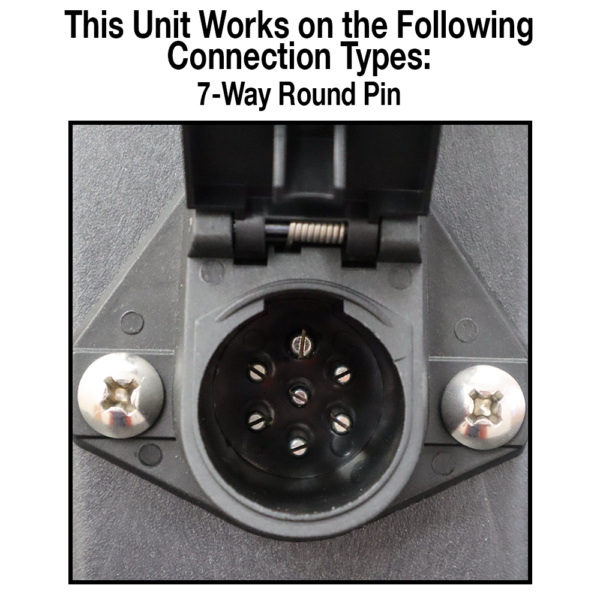

⚙️Connection Type: 7-Way Round Pin
⚙️Power Input: 12/24V DC
⚙️Source Output: 20A @ 12/24V DC
⚙️Battery Power: LiFePO4 Battery (Lithium Iron Phosphate).
⚙️Max. Operating Pressure: 120 psi
⚙️Controls: Tablet, Remote or Manual
⚙️Tablet Size: 8" Military-Grade Rugged Tablet
⚙️Tablet: Android 7.1
⚙️Tablet/Remote Range: 100'
⚙️Bluetooth®: 4.0 or Newer
⚙️Material: 16 Gauge Powder-Coated Steel
⚙️Dimension With Handle/Brackets: 22" W x 31" H x 14.5" D
⚙️Dimension Without Handle/Brackets: 17" W x 31" H x 14.5" D
⚙️Made In USA
Includes
Includes
⚙️8″ Rugged Tablet

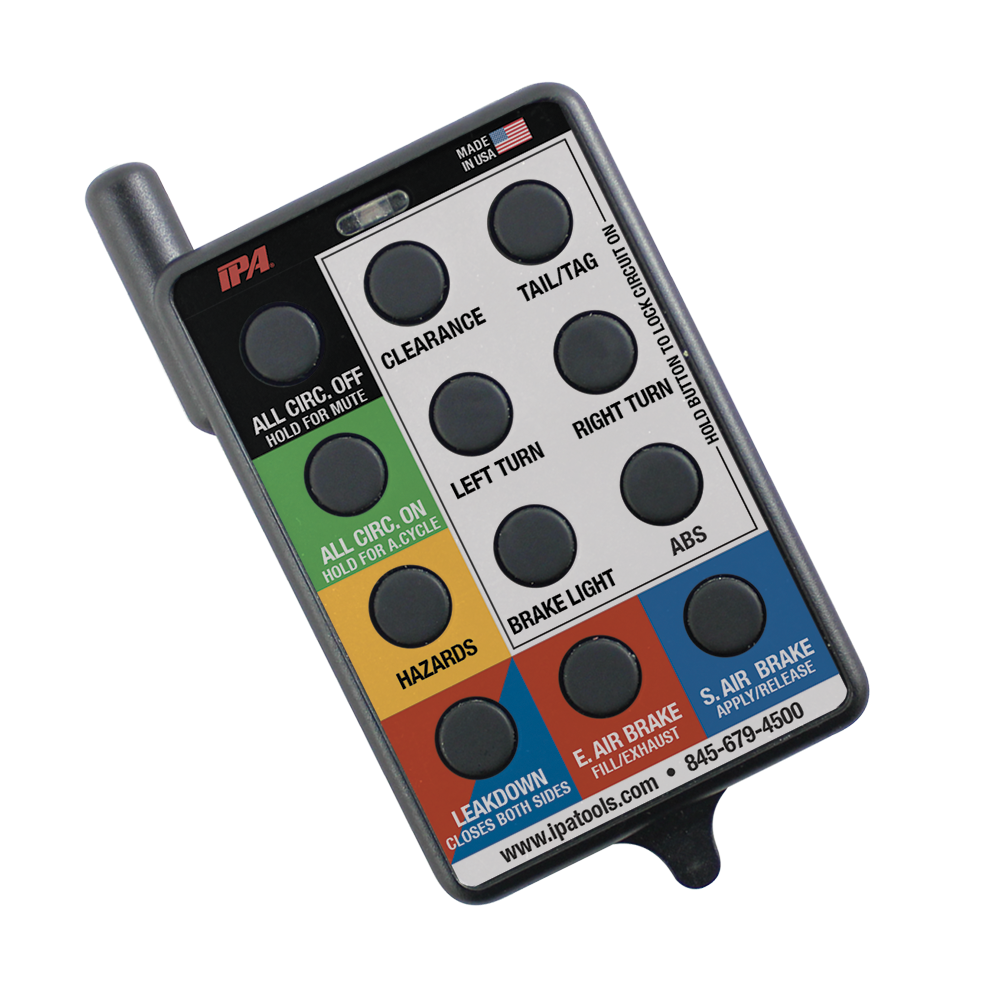

⚙️2nd Gen 12-Button Remote Control
⚙️Bluetooth® Communication Module • 5’ Bluetooth® Extension Cable

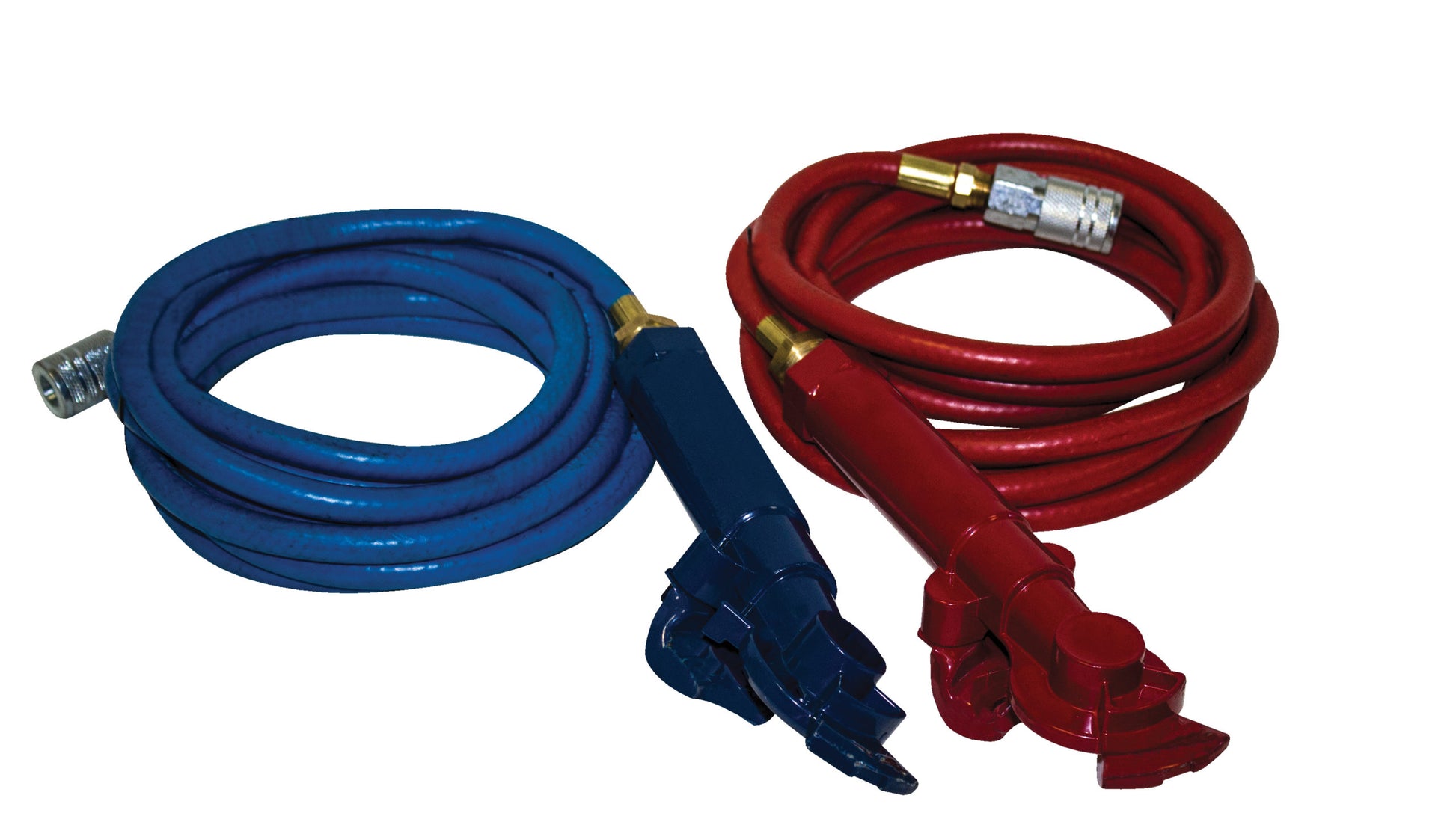

⚙️12′ Gladhand Hoses with Handles
⚙️ 12′ 7-Way Cable
⚙️External Battery Connector with Eyelets
⚙️External Battery Connector with Alligator Clips ⚙️500mA Battery Charger
⚙️Expanded Training Manual and Parts List Binder
Dimensions
Dimensions
- 22" W x 31" H x 14.5" D
Weight
Weight
56 lb
Warranty
Warranty
- 3-Year Limited
WARNING ⚠️ PROP 65
WARNING ⚠️ PROP 65
- This product can expose you to chemicals including Di (2-ethlyhexyl) phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
