4105 Smart MUTT® X (7-Way Spade, 7-Way Round, 6-Way Round, 5 and 4 Pin)
4105 Smart MUTT® X (7-Way Spade, 7-Way Round, 6-Way Round, 5 and 4 Pin)
The SMART MUTT® X is specifically designed for efficient one-person testing, saving time and preventing costly road calls and citations. With its ability to test both lights and electric/hydraulic brakes on commercial and light-duty trailers.
Enjoy Free Shipping Within US! 🚚
Features and benefits
Features and benefits
ELECTRICAL TESTING(12/24V Operation):
⚙️ Power lights: Manually, All-On, Auto Scan, or Remote Control.
⚙️ Audible and visual alerts: cross, open, overloaded and short circuit indication.
⚙️ Pulsar® mode allows diagnostic repair.
⚙️ Advanced trailer wiring diagnostics.
⚙️ Diagnostic Pulsar® mode allows safe overloaded/short circuit repair.
⚙️ Analog Ammeter Readout 0-20 Amps.
⚙️ Remote control allows for one-man testing.
Specifications
Specifications

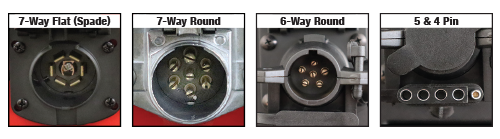

⚙️Connection Type: 7-Way Flat (Spade), 7-Way Round, 6-Way Round and 4/5 Pin.
⚙️Power Input: 12/24V DC.
⚙️Battery Requirements (Battery Not Included): Yuasa #YTX14 or Similar Recommended.
⚙️Source Output: 20A @ 12/24V DC.
⚙️Controls: Manual, Remote, Automatic.
⚙️Material: Powder-Coated Steel.
⚙️CoO: USA.
Includes
Includes
⚙️12-Button Remote Control (#MUT-RM12-4A).
⚙️500mA Battery Charger (#CHR0001).
⚙️3-Way Trailer Adapter (#8000).
Dimensions
Dimensions
- 12" L x 9.5" W x 9" H
Weight
Weight
11.5 lb
Warranty
Warranty
- 3-Year Limited
WARNING ⚠️ PROP 65
WARNING ⚠️ PROP 65
- This product can expose you to chemicals including Di (2-ethlyhexyl) phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
