9005A Super MUTT® Service-Truck Edition

ELECTRICAL TESTING(12/24 Volt Operation)

⚙️ Power lights: Manually, all-on, auto scan, or by remote control
⚙️ Audible and visual alerts: cross, open, overloaded and short circuit indication
⚙️Pulsar® mode allows diagnostic repair
⚙️Advanced trailer wiring diagnostics
⚙️Amperage readout and range (0-20 amps)
⚙️Cable testing
⚙️Ground failure detection: differentiates between wire and chassis ground

AIR BRAKE TESTING

⚙️Performs leak-down test on service and emergency lines.
⚙️Remote control allows observation of slackers to measure and adjust pushrods.
⚙️Real-time, repetitive brake activation to find developing problems and verify leaking servo cans.

REMOTE CONTROL

⚙️(2x) 12-button remote controls test all trailer electric circuitry and air brake actuation, 200 ft. range
⚙️Sync multiple (12) remotes to one unit

⚙️Connection Type: 7-Way Round Pin
⚙️Power Input: 12/24V DC
⚙️Suggested Battery: Yuasa #YTX14 or Similar recommended
⚙️Source Output: 20A @ 12V DC
⚙️Max Operating Pressure: 120 psi
⚙️Air Input: ¼" npt (120 psi max.)
⚙️Controls: Manual, Remote, Automatic
⚙️Tires: 10" Pneumatic
⚙️Material: Powder-Coated Steel
⚙️Made in: USA

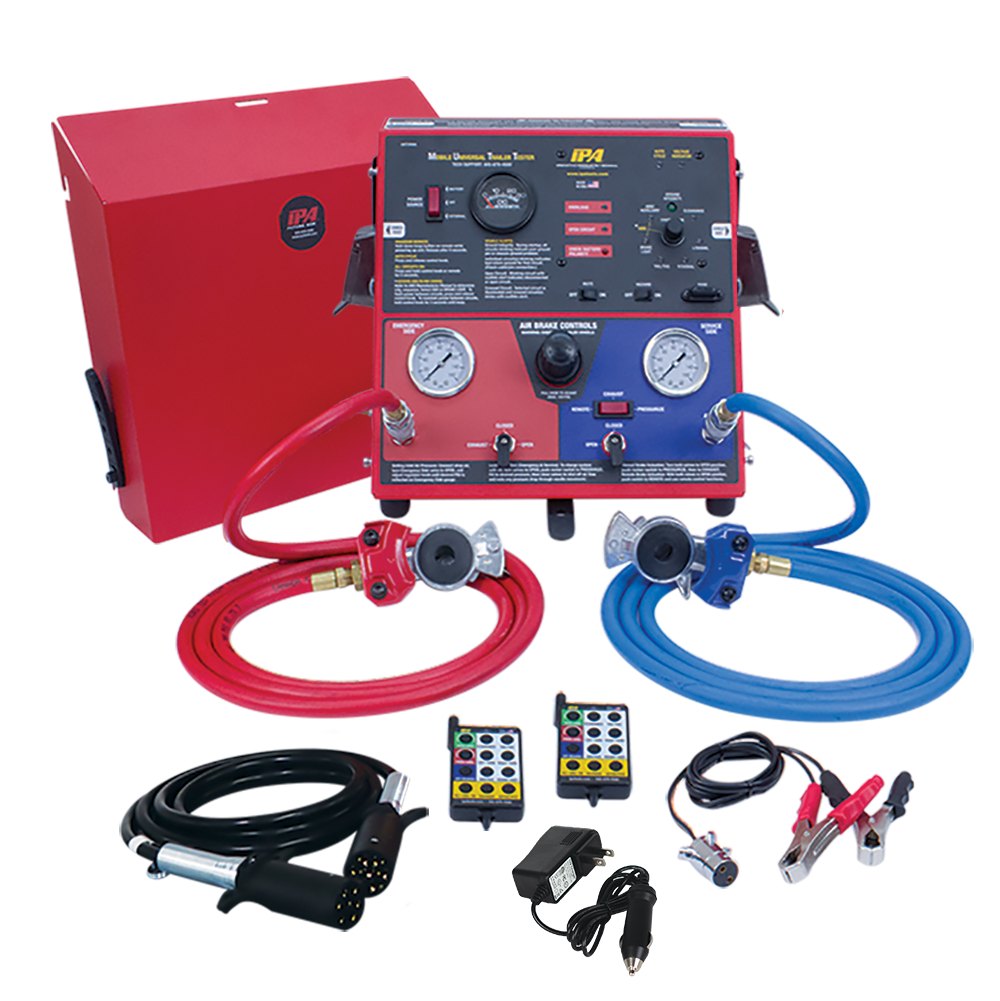

⚙️(2x) 12-Button Remote Control (#MUT-RM12)
⚙️5′ 7-Way Cable (#7900K-1)
⚙️External Battery Connector with Clips(#9005A-4AS)
⚙️8′ Red Hose with Gladhands (#7900AP-8RD-AS)
⚙️8′ Blue Hose with Gladhands (7900AP-8BL-AS)
⚙️500mA Battery Charger (#CHR0001)
⚙️Face/Battery Shield (#9008-4R)

• 12" L x 9.5" W x 11.5" H

26 lb

• 3-Year Limited
