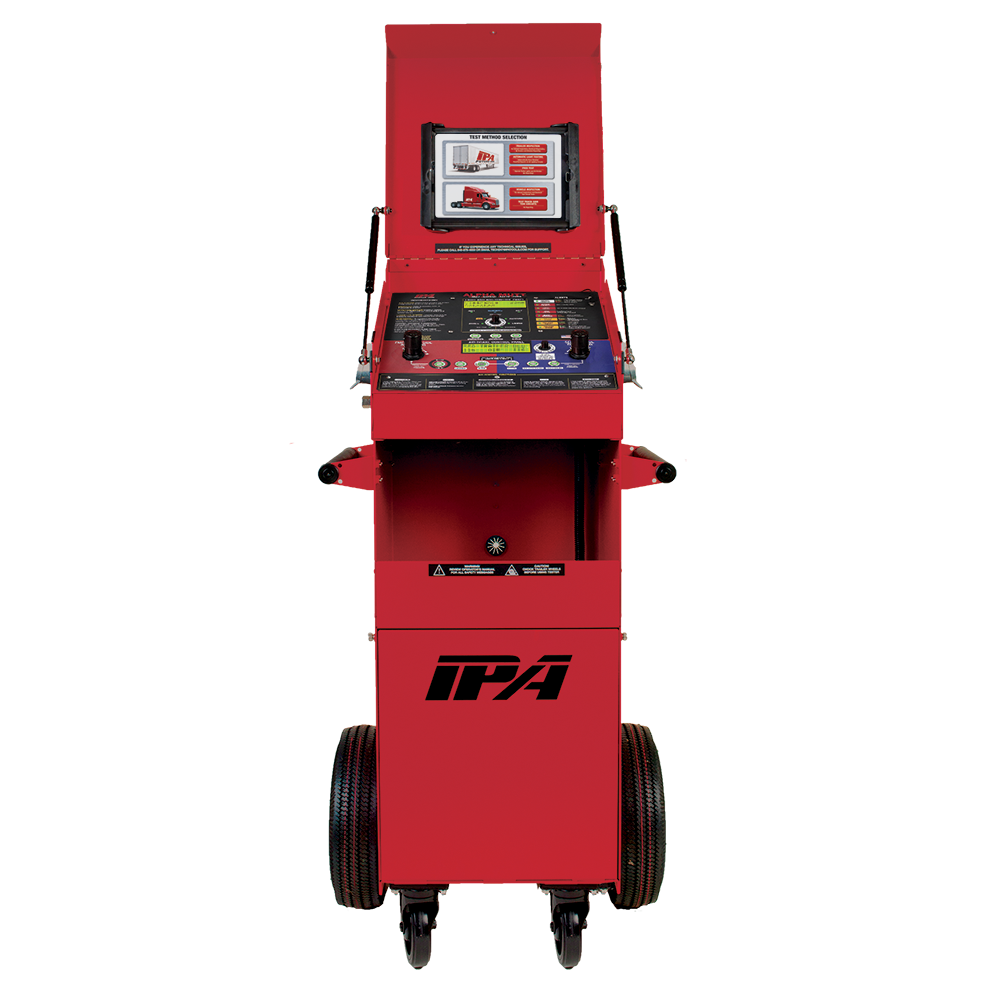

5710A-T10 Alpha Mutt® (2nd GEN) With ABS And Tablet

ABS TESTING:

⚙️Reads and clears codes on front panel or tablet.
⚙️Accesses ECU data; manufacturer, make, model, etc.
⚙️Displays diagnostic troubleshooting information.
⚙️Automatically detects corroded ABS wires and faulty ECU’s with patent-pending technology

ELECTRICAL TESTING(12/24 Volt Operation):

⚙️Automatic cross, open, overload, short and ground fault detection.
⚙️Highly accurate digital ammeter with 1mA resolution.
⚙️Chase down short circuits with Pulsar® mode.
⚙️Ground failure detection: differentiates between wire and chassis ground.
⚙️Cable testing.
⚙️Control lights by remote.

AIR BRAKE TESTING:

⚙️Dual regulators.
⚙️Remote-controlled air brake activation.
⚙️Real-time, repetitive brake activation to find developing problems and verify leaking servo cans
Perform analog leak-down tests in service and emergency lines.

TRUCK-SIDE TESTING:

⚙️Tests continuity to trailer connectors of tractor.
⚙️Tests air brake output at tractor gladhands.

IPA®’s Diagnostic Software Suite:

⚙️IPA®’s diagnostic software suite provides faster and more comprehensive paperless inspections, resulting in less mistakes and citations down the road. The Inspection Customization Tab helps reduce costs and technician/fleet manager frustrations by avoiding time-consuming, failure-prone data entry points.

Capture Inspection Reports:

⚙️Inspection accountability.
⚙️Customizable, password-protected user login.
⚙️Technician’s username is recorded with each test.
⚙️Trailer VIN entry with each inspection maintains more accurate record keeping.

PREVENTS RECURRING MISTAKES AND PROVIDES WALK-THROUGH EXPERT GUIDANCE:

⚙️Built-in Diagnostic Message Center analyzes inspection results in real-time, providing users with immediate feedback and troubleshooting suggestions.
⚙️Detailed pass/fail circuit conditions (ground, open, crossed and short) will alert with specific values.
⚙️Provides real-time data and control.
⚙️Records multiple data points for each circuit including wattage, voltage and current.
⚙️Reads accurate current from 0 – 21 amps @ 1mA resolution.

RECORD AND ANALYZE INSPECTIONS RESULTS:

⚙️Logs detailed pass/fail inspection reports.
⚙️Easily accessible report history allows technicians to analyze patterns for predictable failure points across all fleet service operations.
⚙️Upgradeable cloud-based option syncs an unlimited number of service locations with a central hub.
⚙️Email, print or export reports to PDF or XLS formats.

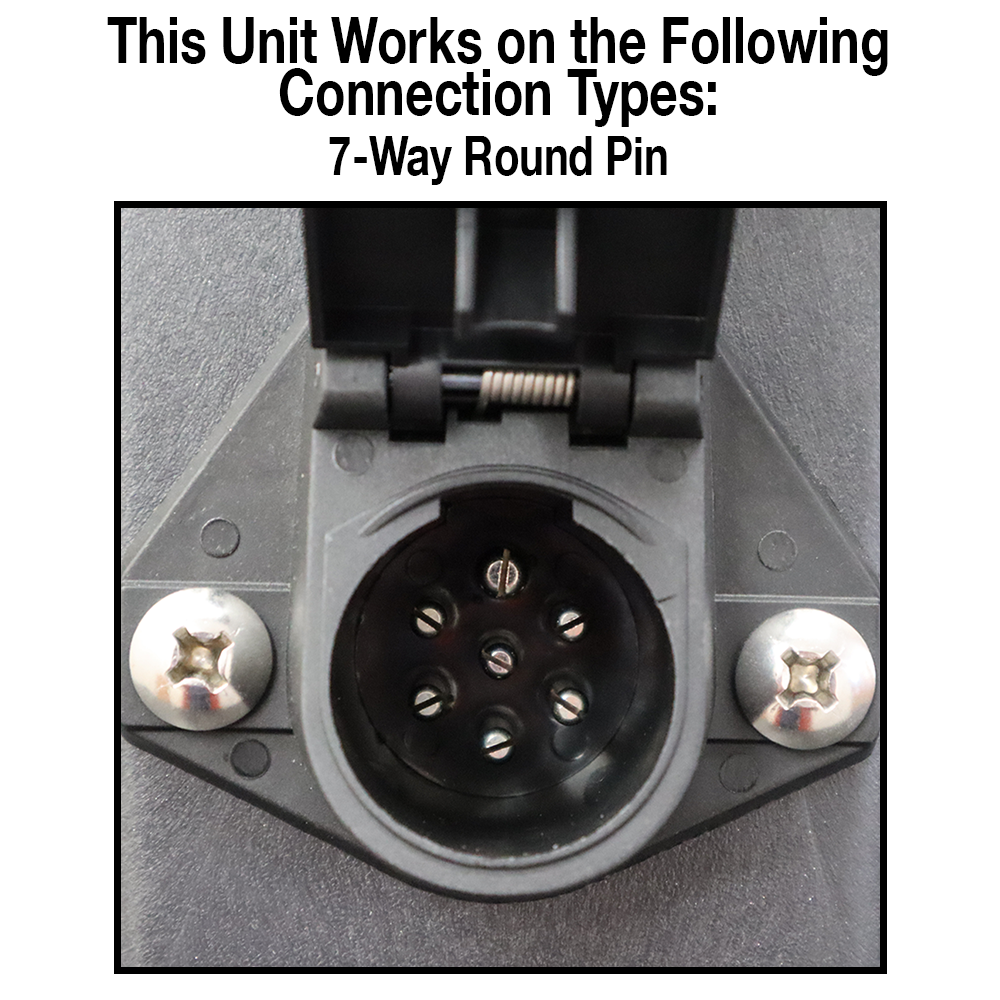

⚙️Connection Type: 7-Way Round Pin
⚙️Power Input: 12/24V DC
⚙️Battery Compartment: 14" W x 15.5" H x 13" D
⚙️Suggested Battery: 2X Group 31 Threaded Post (or similar) Not Included
⚙️Internal Battery Charger: 12V 10A Smart Battery Charger
⚙️Ammeter: 0 - 21 amps, 1mA Resolution
⚙️Source Output: 20A @ 12/24V DC
⚙️Max Operating Pressure: 120 psi
⚙️Air Input: ¼" npt (120 psi max.)
⚙️Controls: Tablet, Remote or Manual
⚙️Tablet Size: 10"
⚙️Tablet: Android Operating System
⚙️Tablet/Remote Range: 100'
⚙️Bluetooth®: 4.0 or Newer
⚙️Tires: 12.5" Pneumatic
⚙️Casters: 6" Locking
⚙️Shelf Space: 14" W x 11" H x 13" D
⚙️Lid: Face Cover with Dampeners
⚙️Material: 16 Gauge Powder-Coated Steel
⚙️Made In USA

⚙️10″ Tablet (#5700-TAB)

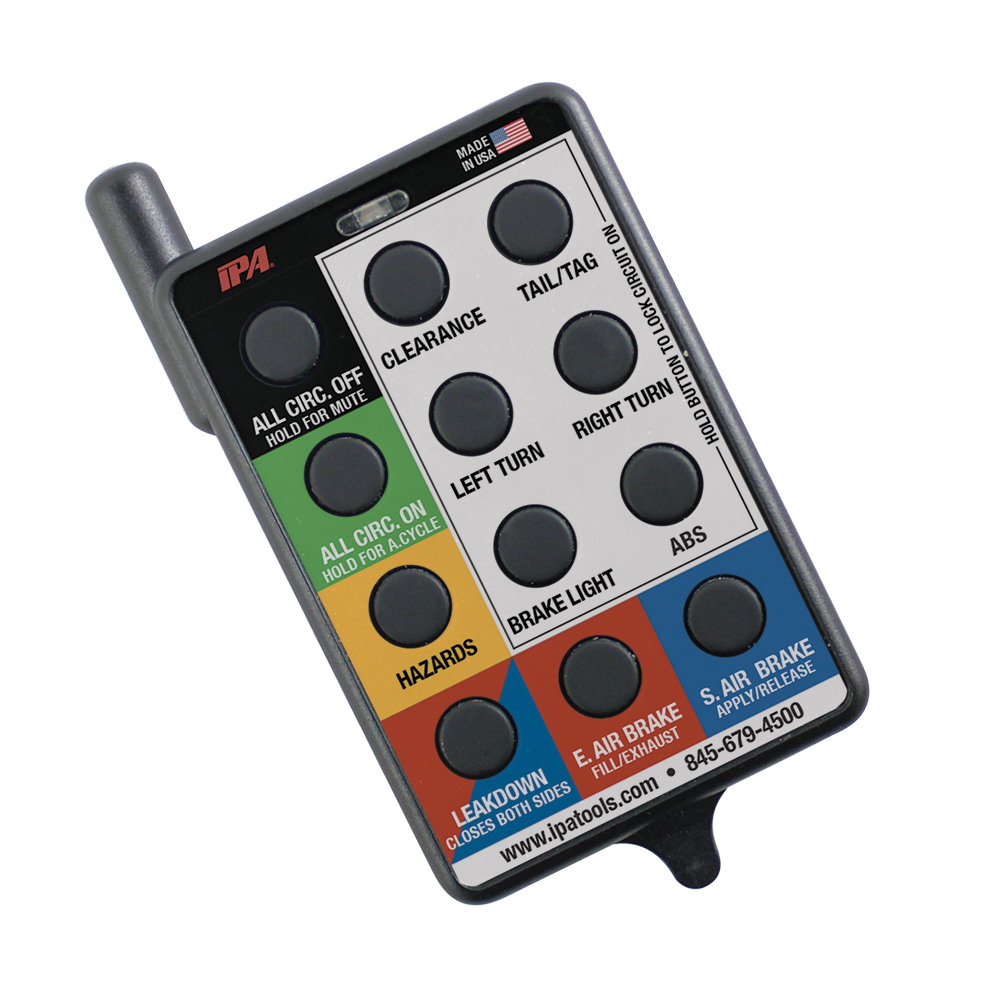

⚙️2nd Gen 12-Button Remote
⚙️(#MUT2-RM12)
⚙️ Bluetooth® Antenna (#5700-BT-AS3)
⚙️12′ 7-Way Cable (#7900K-12AS)

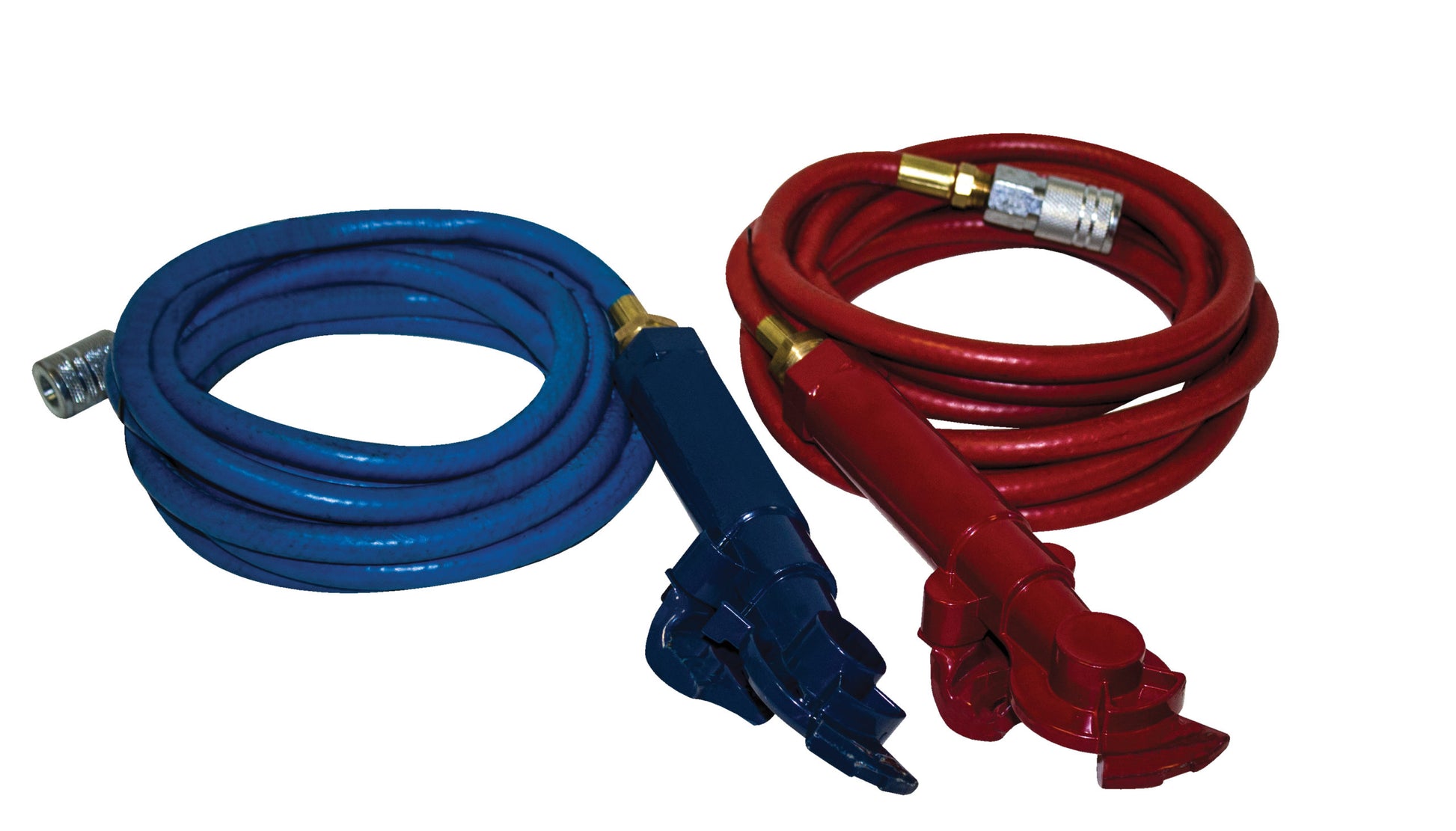

⚙️12′ Red Gladhand Hose with Handle (7900AP-12RED-FX)
⚙️12′ Blue Gladhand Hose with Handle (7900AP-12BLU-FX)
⚙️12″ Bluetooth® Extension Cable (CBL-OBD2MF-12) ⚙️Power Cord for Internal Charger (#7900K-80ACORD) ⚙️Rain Cover (#CVR-0002)

• 22" L x 23" W x 45" H

85 lb

• 3-Year Limited
